Priefert Cattle Corral Layout 1

• The CS-1 is great for permanent corrals and versatile enough for portable applications.
• Expandable, and reversible, this layout works well for small operations or those who wish to start small with plans for expansion.
• “Tough Enough for Cattle, Safe Enough for Horses,” this sweep is constructed from our number one selling cattle panel, the Premier Panel.
• Panels feature single piece drilled stays to provide extra strength and stability, J-legs to increase the ease of portability and prevent sinking into wet or boggy ground and chain connectors to offer increased versatility for connecting panels over uneven ground and allow for easy connection to existing structures.
• 10’ wide Premier Free Swing Bow Gate works as the sweep gate, pushing cattle into the working alley.  Gate features a 7’ tall bow frame for added stability.
• With no tools required, the effective height of the “no-back” Alley Stop can be quickly set to prevent the backing of bulls, cows, and calves.
• Situated every 8’ along the length of the alley, Alley Frames help maintain the strength and support of the 25” wide alley.
• Architectural Grade Powder Coat Finish with UV inhibitors adds years of life to your investment by helping the panels resist rust, scratches and fading.
• Headgate locks and Side Squeeze locks are GUARANTEED FOR LIFE! This infinite locking system allows a perfect fit for every size animal.
• CS-1

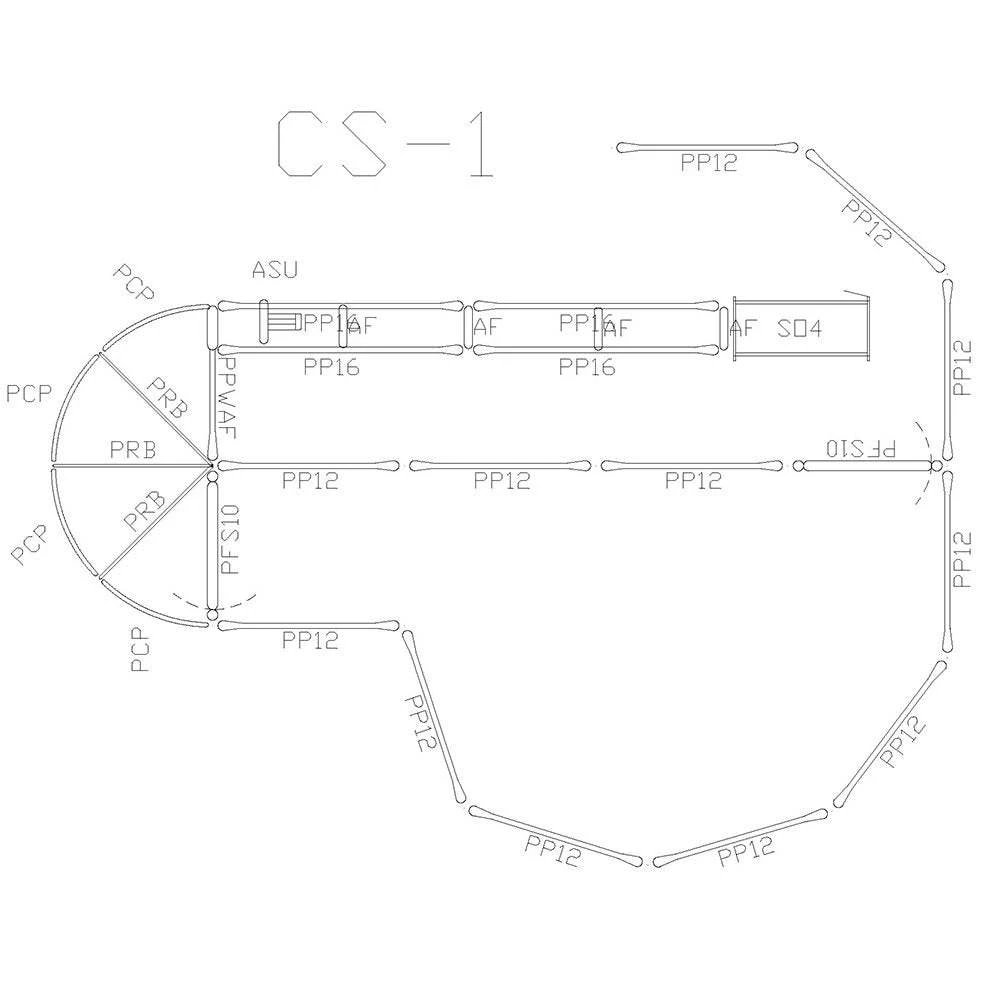

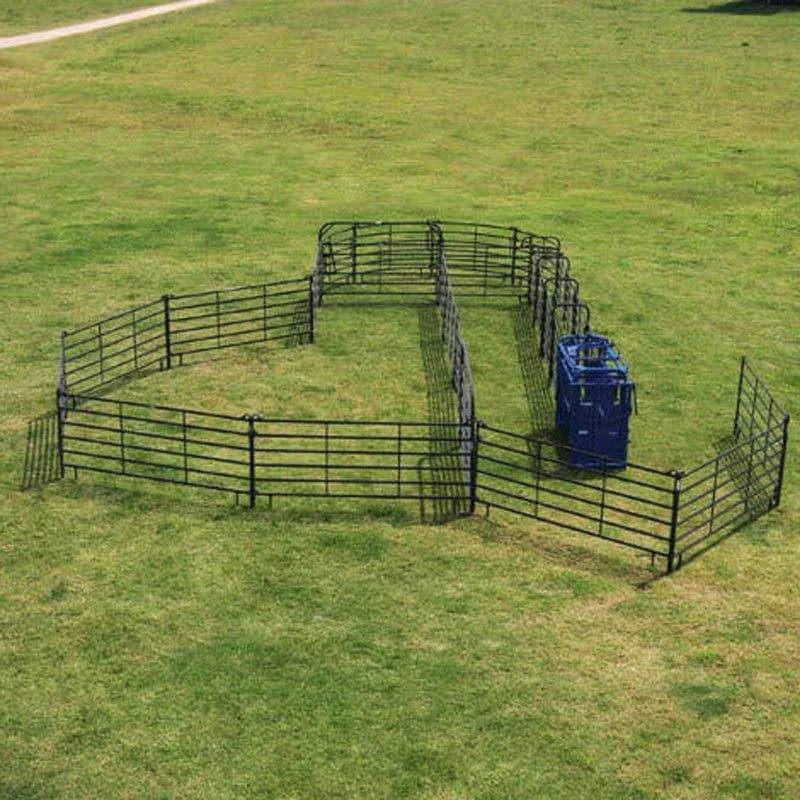

Designed to handle approximately 35 head, this corral features a 180 degree Premier Open Sweep with a 32’ straight working alley that leads to a Model S04 Squeeze Chute. This system is constructed from our number one selling cattle panel, the Premier Panel. The CS-1 features a single holding pen that feeds into the sweep. The working alley maintains a constant width of 25” with Alley Frames every 8’ for maximum support. With no tools required, the “no-back” Alley Stop can be easily adjusted to prevent cattle from backing out of the alley. The attractive and durable Architectural Grade Powder Coat Finish with UV inhibitors will add years of life to your investment by helping your panels resist rust, scratches and fading. The Model S04 Squeeze Chute is Priefert’s number one selling squeeze chute of all time and features the Model 91 Headgate that works in manual or automatic mode. Not only does this system help take some of the “work” out of working cattle, but the S04 is “easy on the cow, easy on the cowboy.”
